RTP/TCP Pipeline
CPPFLEX™ is a Flexible Composite Pipes also known as Reinforced Thermoplastic (RTP) pipe, suitable for use across a range of applications in the Oil & Gas, Hydrogen and Water industries, with key features such as:

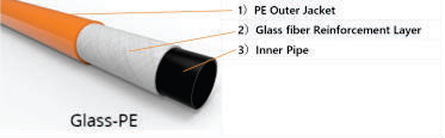

This piping system combines a Thermoplastic High-Density Polyethylene (HDPE)/PP inner pipe, reinforced by a helically wrapped Aramid Fiber Tape / Polyester fibre tape / Carbon fibre tape, and protected by a Thermoplastic outer coating (or "jacket").
All three layers are fused together ensuring a faultless bond. This results in a very robust, flexible, light and corrosion resistant pipe.
CPPFLEX™ is available in diameters from 2" to 8" which can withstand temperature ratings ranging up to 75°C and has high-pressure capacity with typical operating pressures up to 4,500 psi. Higher pressure ratings are also available.

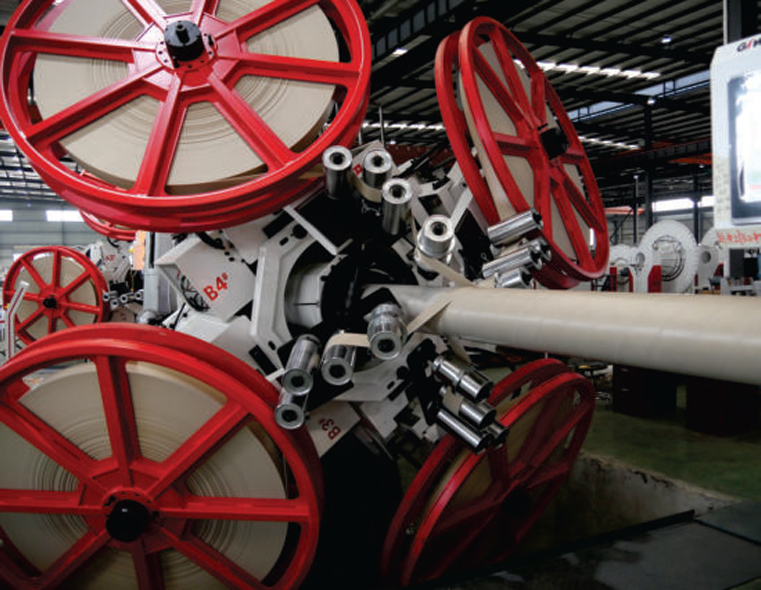

CPPFLEX™ is manufactured in continuous lengths up to 1832 m (depending on pipe diameter). The pipe is flexible and is spooled onto reels which are easy and efficient to transport. The reels allow quick and easy installation, reducing installation costs by up to a third in comparison to other piping materials.
| Items | Raw Material | Remarks |
|---|---|---|
| Inner Tube | HDPE, PERT, PP, PVDF | PERT can be used for working temperature up to 75°C. |
| Tape Wrapping |
|
Tape Thickness: 0.3 mm – 2.0 mm |
| Outer Jacket | HDPE, PERT, PP, PVDF | PERT can be used for working temperature up to 75°C. |
| Items | Raw Material |
|---|---|
| Pipe diameter | Inner diameter 50–200 mm (2 inch–8 inch) |
| Pipe working pressure | 10–30 MPa (1500 psi–4500 psi) |
| Max. Output per day | 3 km |
| Max. Output per year | 900 km |
| Reinforced Material | Steel cord tape / Glass fiber tape / Aramid fiber tape / Steel belt etc. |

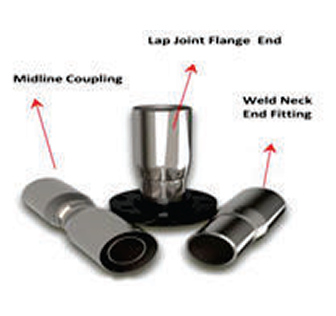

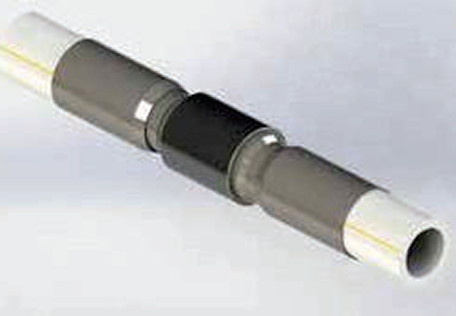

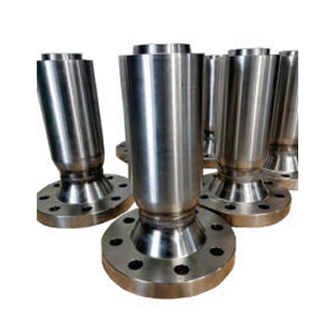

CPPFLEX™ is joined using connectors which are available in all standard configurations i.e.: flanged, coupler, weld-neck, alternatively custom connections can be supplied.
